ELEGOO Arduino UNO Project Super Starter Kit with Tutorial and UNO R3 Compatible with Arduino IDE

Notice:

Due to the no battery policy of Aliexpress Standard Shipping, the original battery from the kit was removed
(without which 4-5 tutorials may not be used normally). If you need it, please purchase the battery separately from other places.
So sorry for the inconvenience caused and we'd appreciate your understanding.

Product Features

1、Free PDF tutorial(more than 22 lessons) and clear listing in a nice package

2、The most economical kit based on Arduino platform to starting learning electronics for those beginners who are interested.

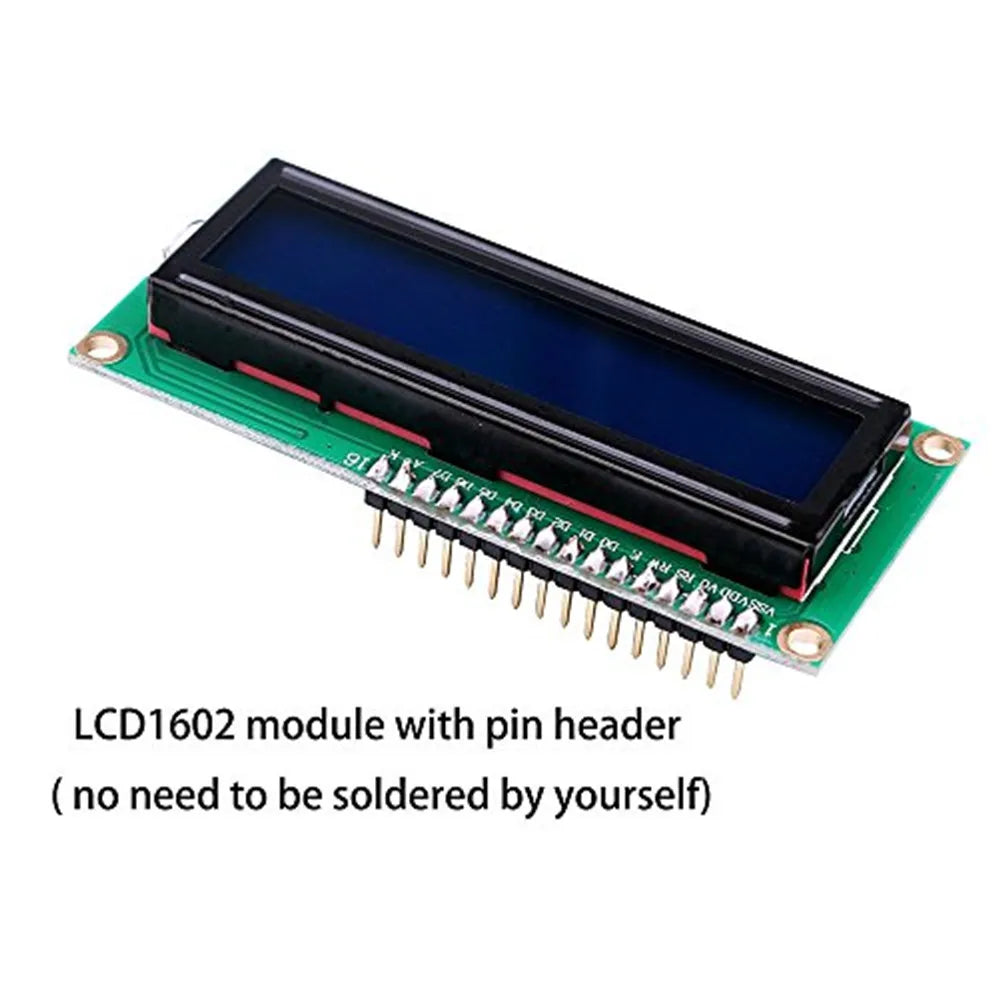

3、Lcd1602 module with pin header (not need to be soldered by yourself)

4、This is the upgraded starter kits with power supply module.

5、High quality kit with UNO board, compatible with Arduino UNO R3, MEGA 2560 R3, NANO.

100% Compatibility with Official Arduino Software, Sendsors and Codes

Arduino is an open-source platform used for building electronics projects. Arduino consists of both a physical circuit board (often referred to as a microcontroller) and a piece of software, or IDE (Integrated Development Environment) that runs on your computer, used to write and upload computer code to the physical board.

For the reason of open source, the manufacture of Arduino boards and software distribution by anyone is permitted. Arduino boards are available commercially in preassembled form, or as do-it-yourself (DIY) kits.

Elegoo is one of the manufacturer on the market, whose clone products are 100% compatible with the official Arduinomicrocontroller boards, they can use the official Arduino software, sensors and codes.

74HC595 and LEDs

74HC595 is a Serial to Parallel Converter which has eight outputs (perfect) and three inputs that you use to feed data into it a bit at a time.

This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second) but it's still really fast, way faster than humans can detect, so it's worth it.

74HC595 shift register is a type of chip that holds what can be thought of as eight memory locations, each of which can either be a 1 or a 0. To set each of these values on or off, we feed in the data using the 'Data' and 'Clock' pins of the chip.

4 Digit 7 Segment Display

7 segment displays consist of 7 LEDs, called segments, arranged in the shape of an “8”. Most 7-segment displays actually have 8 segments, with a dot on the right side of the digit that serves as a decimal point.

When using 4-digit 7-segment display, the common anode or common cathode pin is used to control which digit is displayed. Even though there is only one digit working, the principle of Persistence of Vision enables you to see all numbers displayed because each the scanning speed is so fast that you hardly notice the intervals.

By building the circuit, users can make a simple display showing certain numbers, or more complexly, a count-up timer or a elecrical rolling dice.

Stepper Motor

Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time.

With a computer controlled stepping you can achieve very precise positioning and/or speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.

the simplest way of interfacing a unipolar stepper motor to Arduino is to use a breakout

for ULN2003A transistor array chip, applying voltage to each of the coils in a specific sequence.

Learn Electronics with Arduino

The Arduino boards can be used as the brains behind almost any electronics project. Arduino can interact with buttons, LEDs, motors, speakers, GPS units, cameras, the internet, and even your smart-phone or your TV! By connecting the Arduino board with a personal computer via a USB cable and uploading to the board, users can create digital devices and interactive objects that can sense and control objects in the physical and digital world like robots or even honest fortune-telling machines.

For this Elegoo Super Starter Kit, we provide a 24-lesson tutorial, introducing the basic setting of the Arduino software IDE, the working principles of the sensors to enable the UNO board to control the sensors.

This Kit is suitable for 10-year-old and up. Younger kids should be under supervision and guidance of adults.

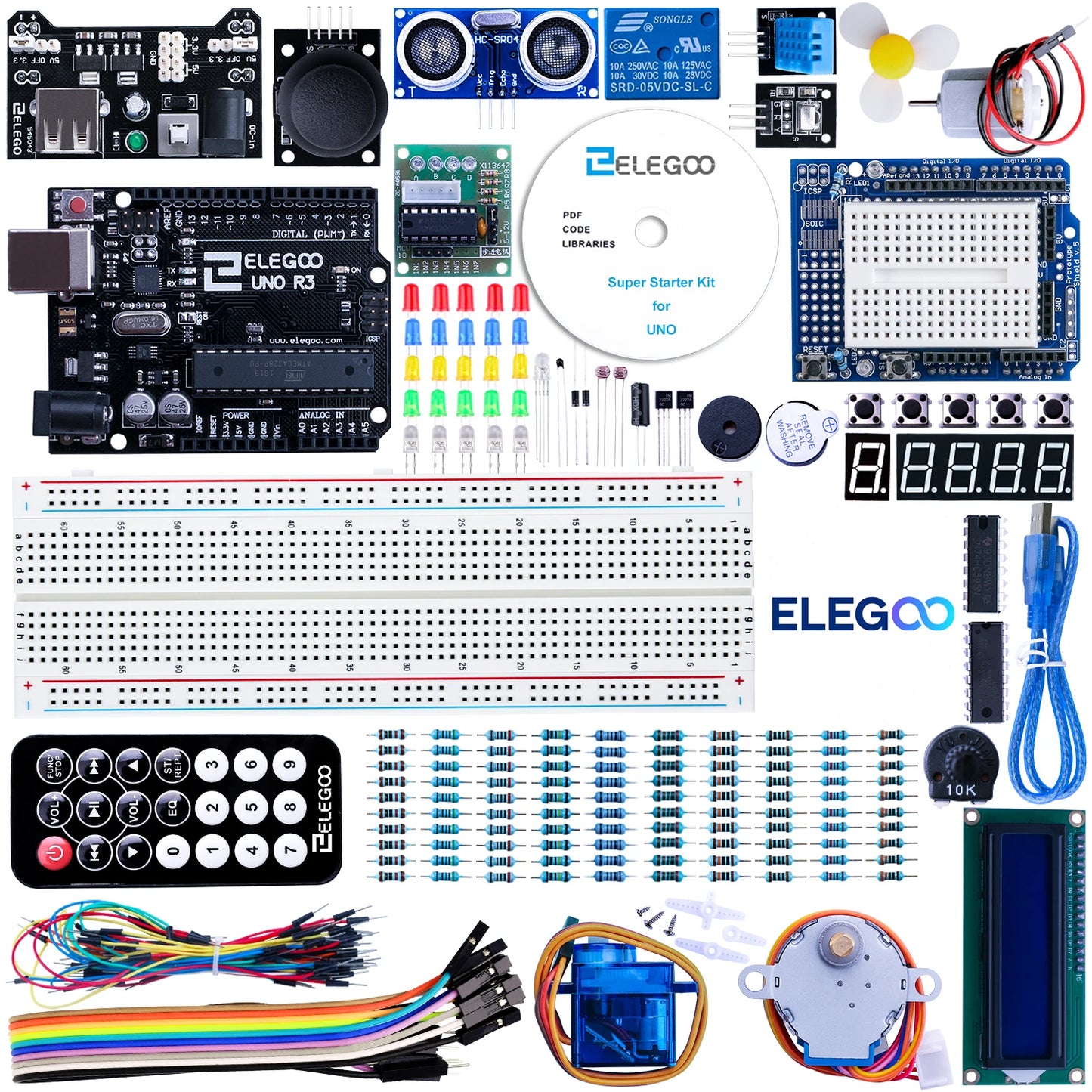

Component Listing(no battery)

1pcs UNO R3 Controller Board; 1pcs LCD1602 Module ( with pin header); 1pcs Breadboard Expansion Board; 1pcs Power Supply Module WARNING: Pls. do not use the voltage higher than 9V

1pcs Joystick Module; 1pcs IR Receiver; 1pcs Servo Motor (SG90); 1pcs Stepper Motor; 1pcs ULN2003 Stepper Motor Driver Board

1pcs Ultrasonic Sensor; 1pcs DHT11 Temperature and Humidity Module; 1pcs 65 Jumper Wire

1pcs USB Cable; 1pcs Active Buzzer; 1pcs Passive Buzzer; 1pcs Potentiometer; 1pcs 5V Relay

1pcs Breadboard; 1pcs Remote; 1pcs Tilt Switch; 5pcs Button (small); 1pcs 1 digit 7-segment Display; 1pcs 4 digit 7-segment Display

5pcs Yellow LED; 5pcs Blue LED; 5pcs Green LED; 5pcs Red LED; 1pcs RGB LED

2pcs Photoresistor; 1pcs Thermistor; 2pcs Diode Rectifier (1N4007); 2pcs NPN Transistor (PN2222)

1pcs IC 74HC595; 120pcs Resistor; 10pcs Female-to-male Dupont Wire
