Smart Electronics Rain Water Level Sensor Module Detection Liquid Surface Depth Height for Arduino
Smart Electronics Rain Water Level Sensor Module Detection Liquid Surface Depth Height for Arduino
SPECIFICATIONS
- Brand Name : NoEnName_Null
- Model Number : FZ0506
- Theory : Other
- Material : Metal
- Usage : Humidity Sensor
- Sold in : sell_by_piece
- Type : Biosensor
- Output : Digital Sensor
- Origin : Mainland China
- is_customized : Yes
- each pack : 1
- Measurement unit : 100000015
- Package size - height (cm) : 10
- Package size - length (cm) : 10
- Package size - width (cm) : 10
- Package weight : 0.030
Product description:

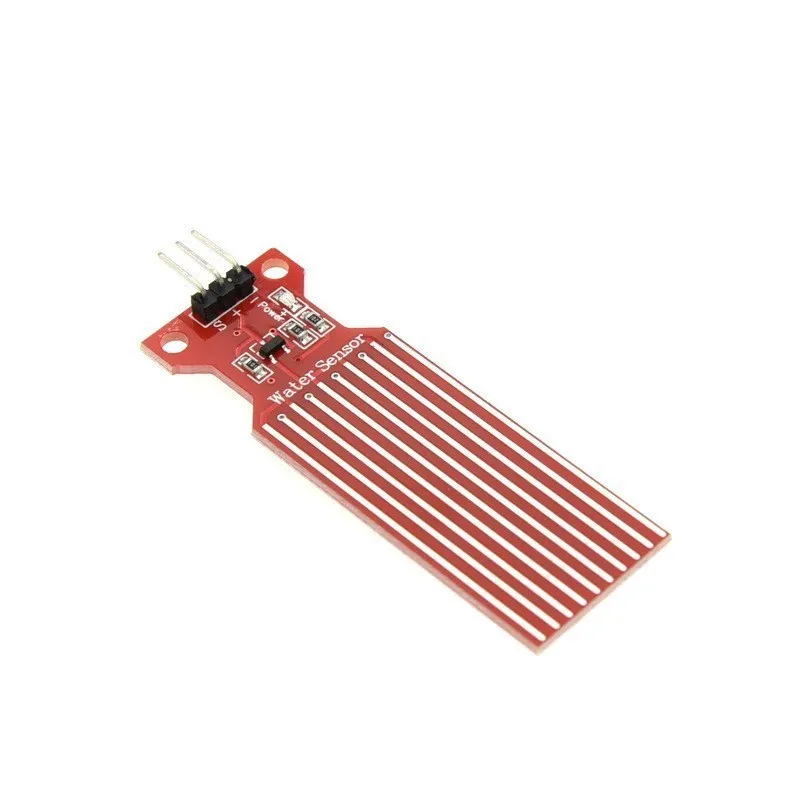

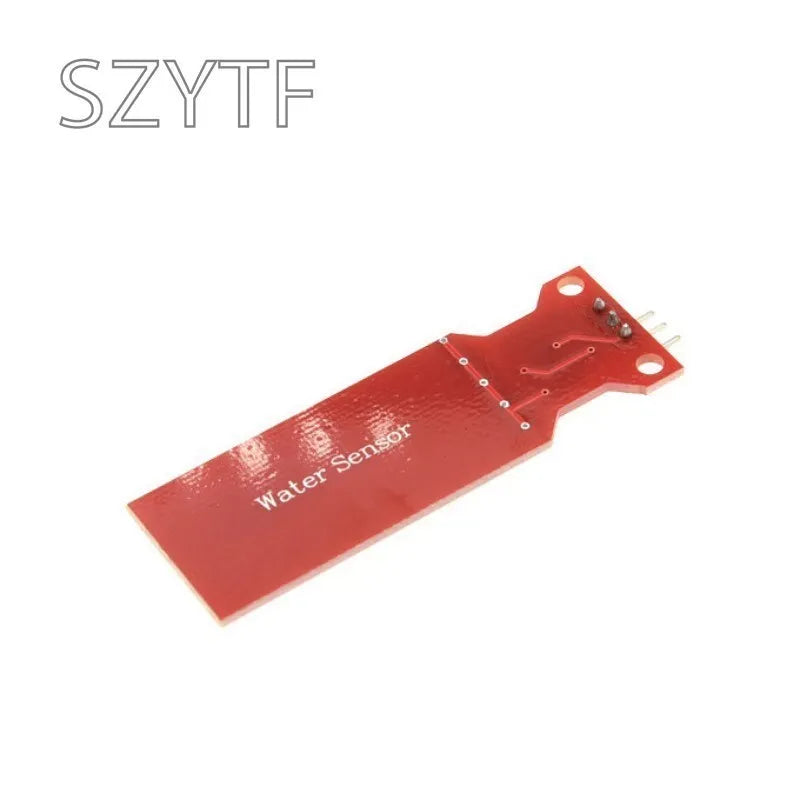

The Water Sensor is a simple-to-use, cost-effective water level/droplet identification detection sensor, which determines the water level by measuring the size of the water droplets/water droplets with a series of exposed parallel wire traces. The conversion of water volume to analog signal is easily completed, and the output analog value can be directly read by the Arduino development board to achieve the effect of water level alarm.
Specifications:
Product name: water level sensor
Working voltage: DC3-5V
Working current: less than 20mA
Sensor Type: Analog
Detection area: 40mm x 16mm
Production process: FR4 double-sided spray tin
Working temperature: 10℃-30℃
Working humidity: 10%-90% non-condensing
Product weight: 3.5g
Product size: 62mm x 20mm x 8mm
