USB Logic Analyzer 24M 8CH Microcontroller ARM FPGA Debug Tool 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz

SPECIFICATIONS

• Brand Name : weytoll
• Origin : Mainland China
• Certification : none
• Measurement Bandwidth : -
• Frequency Range : -
• Output Power : -
• Measurement unit : 100000015
• Sold in : sell_by_piece
• each pack : 1
• Package size - height (cm) : 5
• Package size - length (cm) : 10
• Package size - width (cm) : 5
• Package weight : 0.047

This is a kind of fine quality USB logic analyzer, equipped with 8 channels, can gather at the same time, so as to signal analyze, such as UART. The logic for each channel sampling speed up to 24M/s. You can have a try.

Features:
8 channels can gather at the same time, so as to signal analyze, such as UART.
The logic for each channel sampling speed up to 24M/s.
General applications around 10M, enough to cope with a variety ofoccasions.
Large quantity sample collection, strong and powerful.
Equipped with overpressure protection, for safety working.
Sampling rate can be set as below: 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
Data upload real time, with depth collection, far from practical need.
Support WIN7(32 and 64), 2K, XP, LINUX.

Specifications:

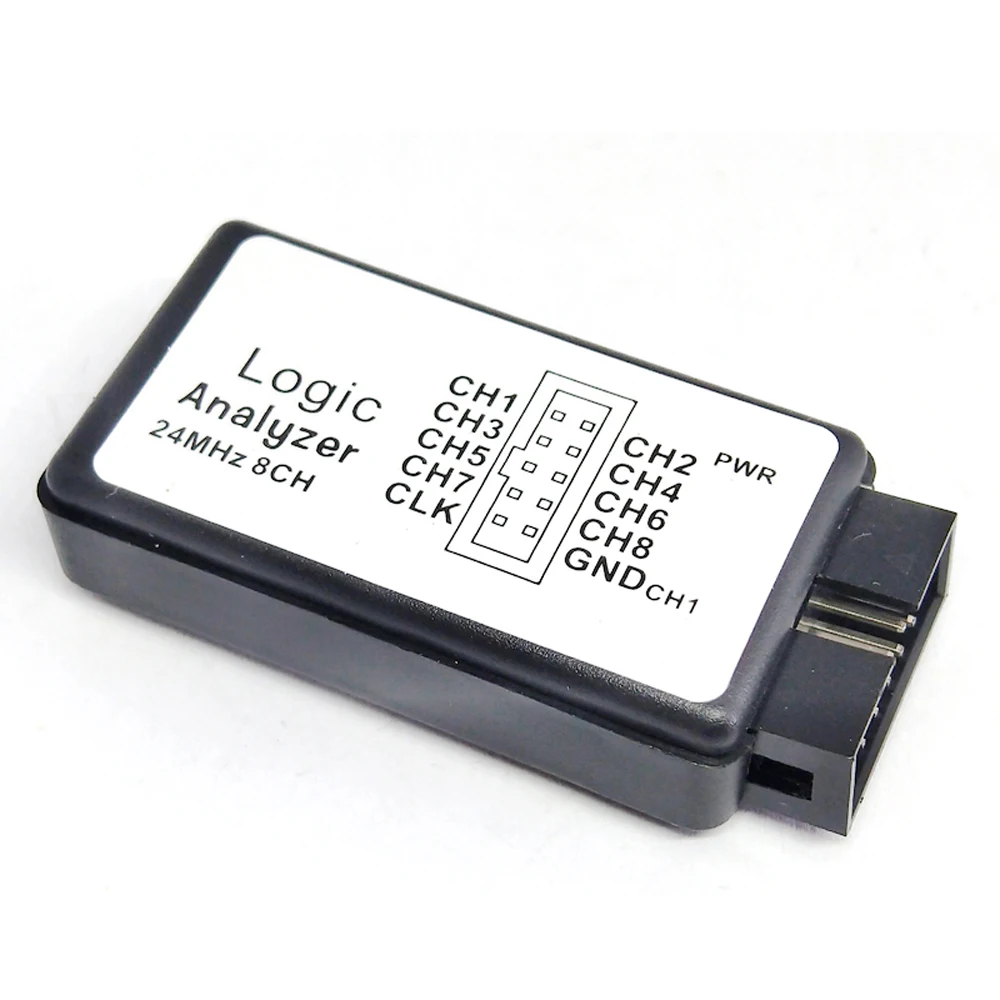

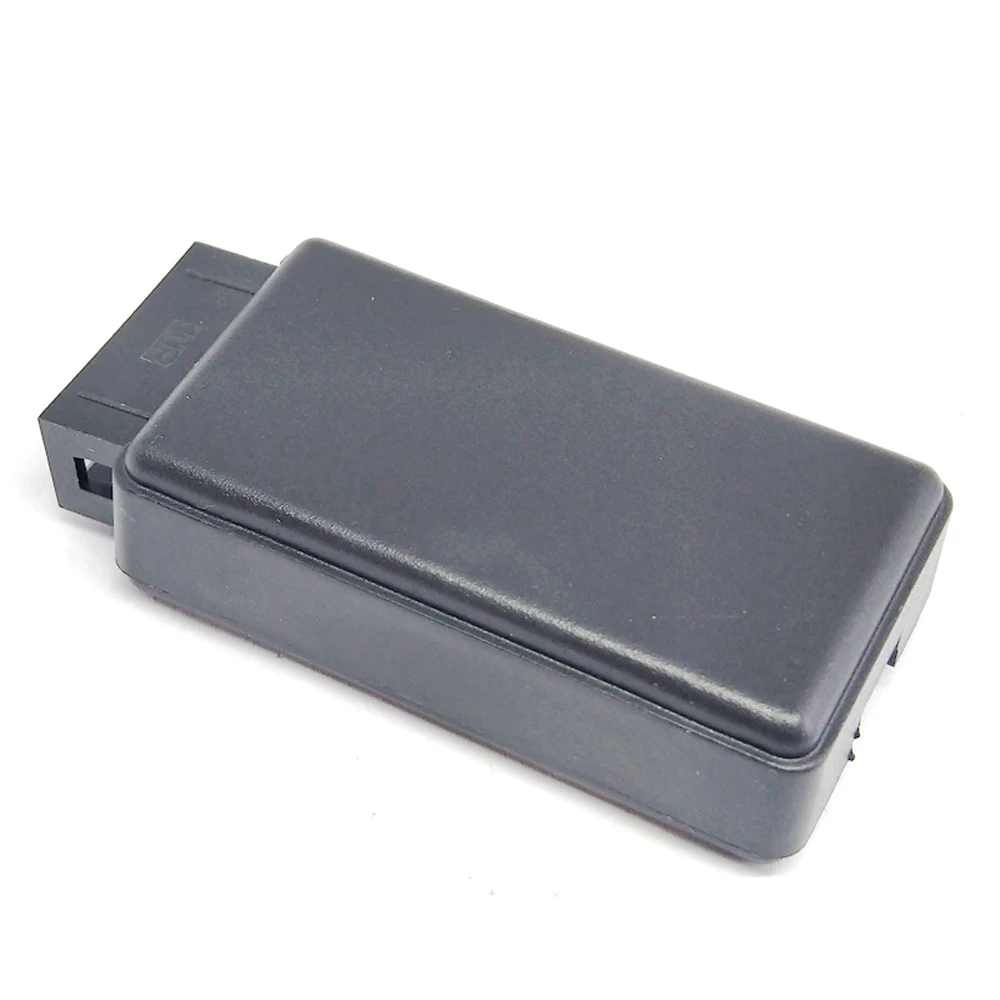

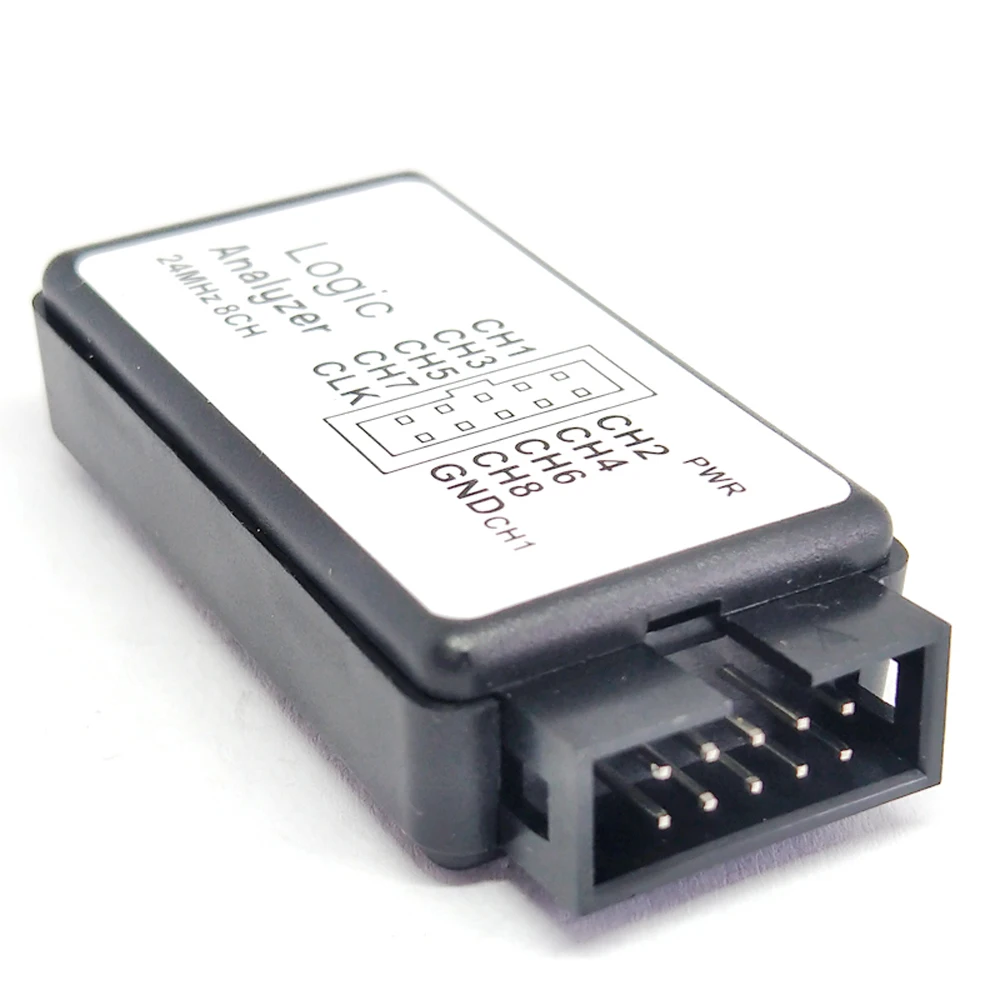

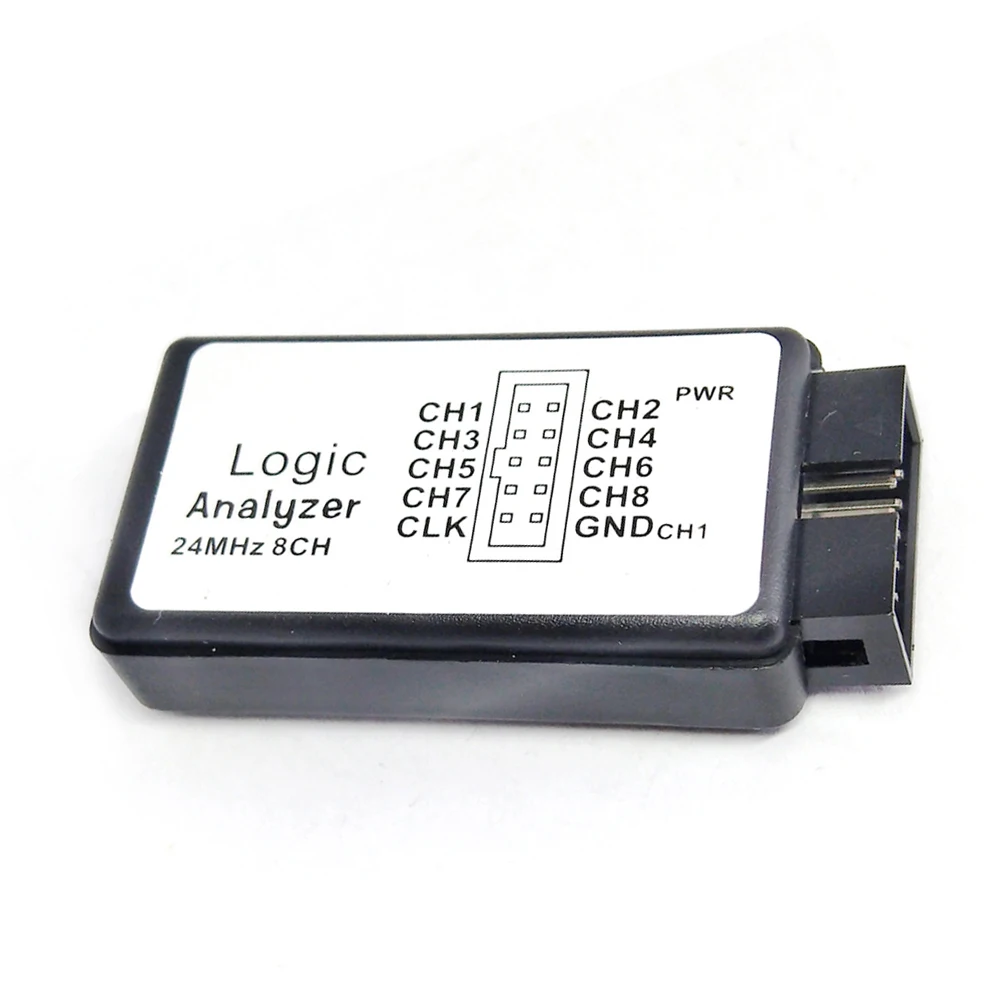

Name: USB Logic Analyzer
Item size: 50 * 28 * 14mm / 1.97 * 1.10 * 0.55in
Item weight: 50g / 1.76ounce
Package size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97in
Package weight: 50g / 1.76ounce

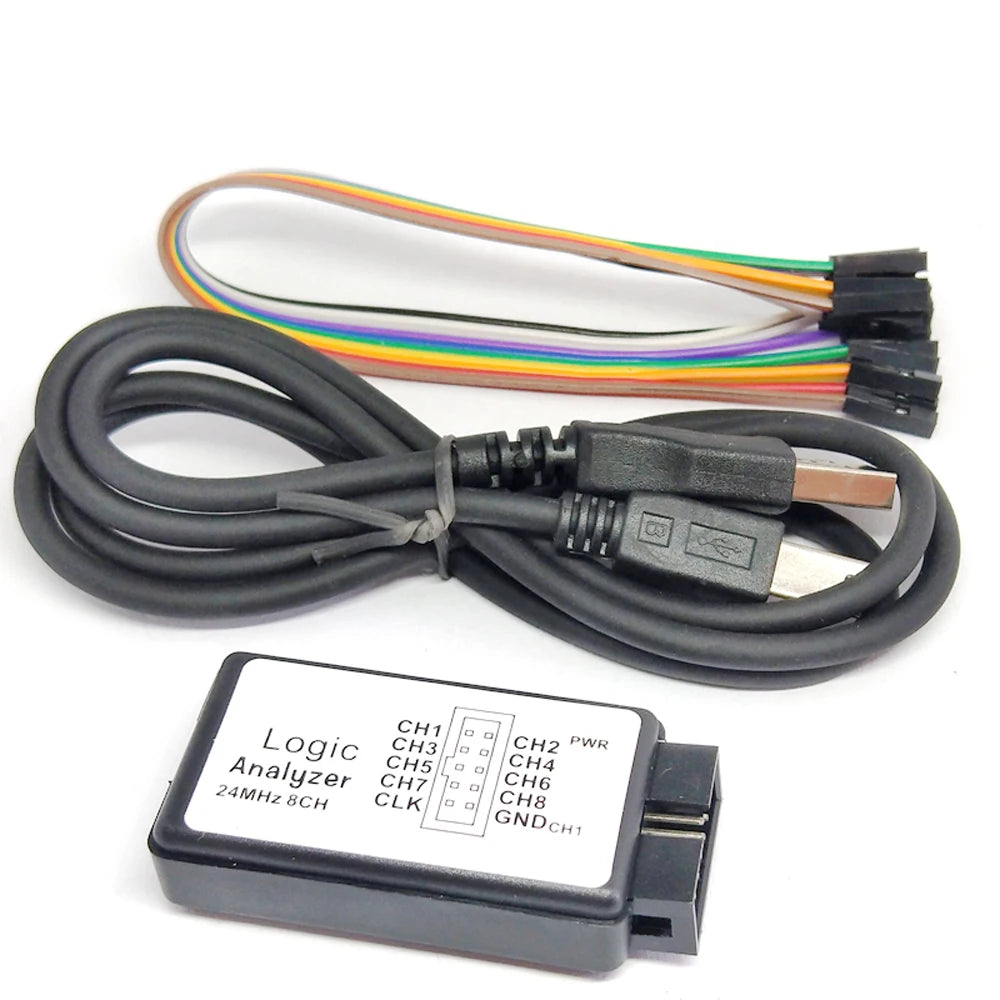

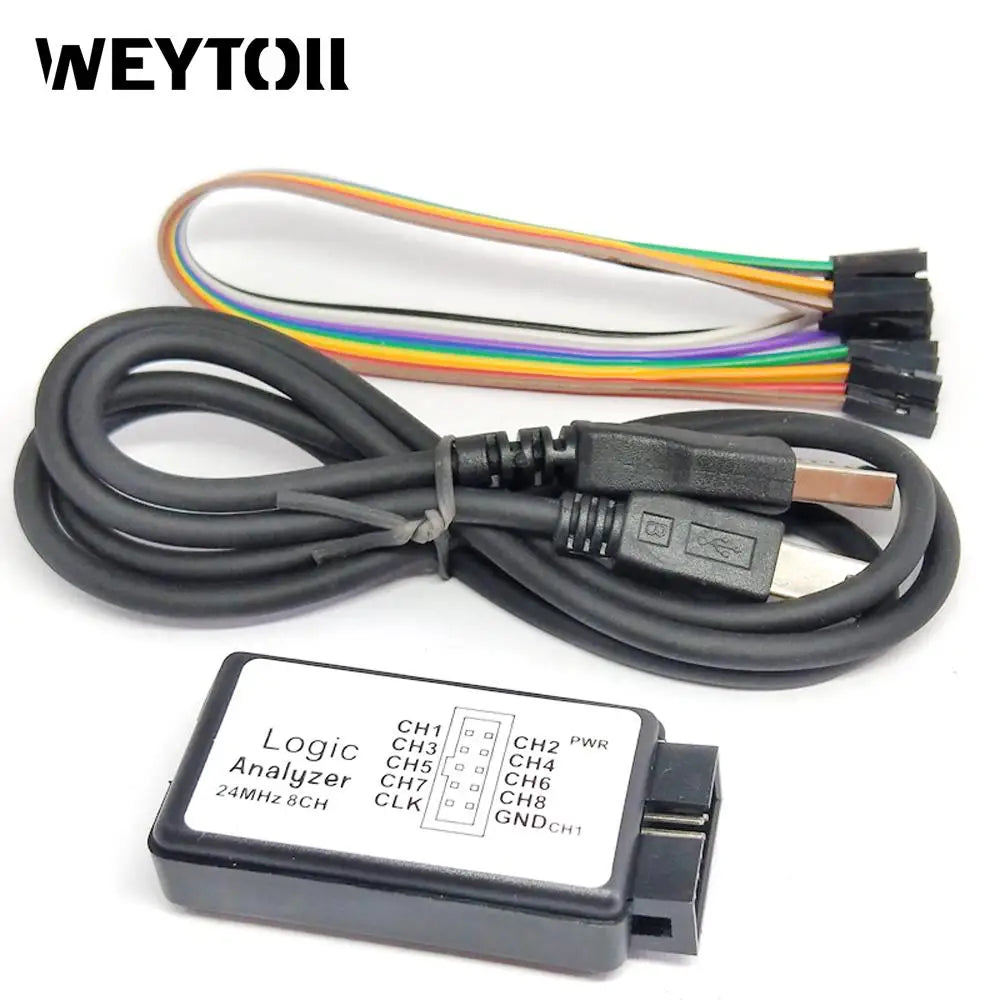

Packing List:
1 * Logic Analyzer
1 * USB Cable
1 * H-arness
